Swing Bridge Control Tower

Swing Bridge Control Tower

0.00

Challenging environmental conditions

This project presents a distinctive set of challenges since the building had to be designed for a site with no access to services, and meet very specific NSTIR operational needs. The building was designed as a minimal-footprint observation tower with a control room on the upper floor to provide better view-planes for the bridge operator. While small in scale, the building needed to include the backup generator and electromechanical equipment necessary  for the emergency operation of the swing-bridge. This, combined with the extreme climate of the site, made the building design and coordination critical.

TIMEFRAME

2015–present

FIRM OF RECORD

Ekistics Planning & Design

TYPE

Architecture, landscape architecture, and infrastructure

CLIENT

Nova Scotia Transportation and Infrastructure Renewal (NSTIR)

LOCATION

Strait of Canso, Nova Scotia

Add To Cart

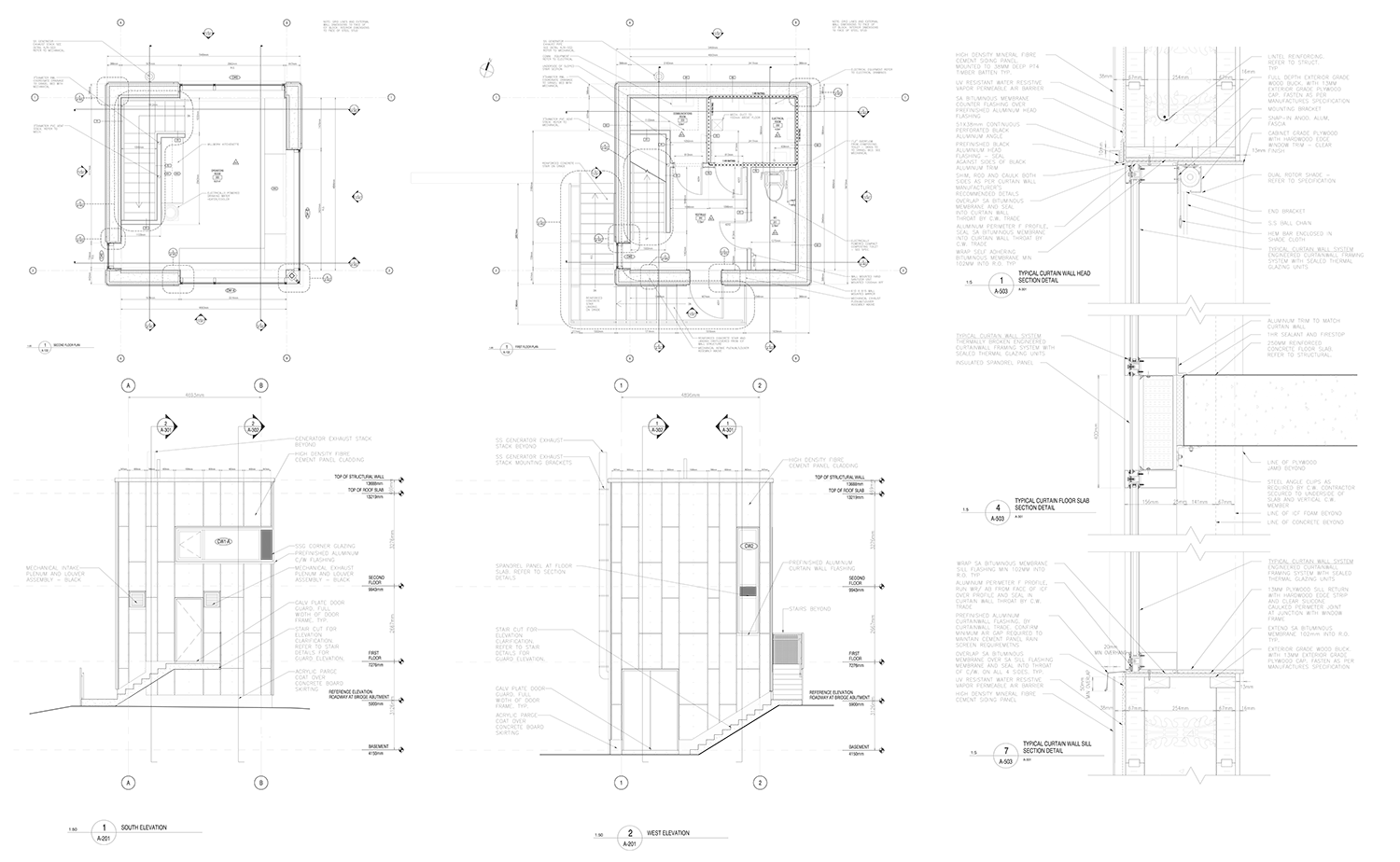

CONSTRUCTION DRAWINGS Plans and elevations.

CONSTRUCTION DRAWINGS
Plans and elevations.

CONSTRUCTION DRAWINGS Sections.

CONSTRUCTION DRAWINGS
Sections.

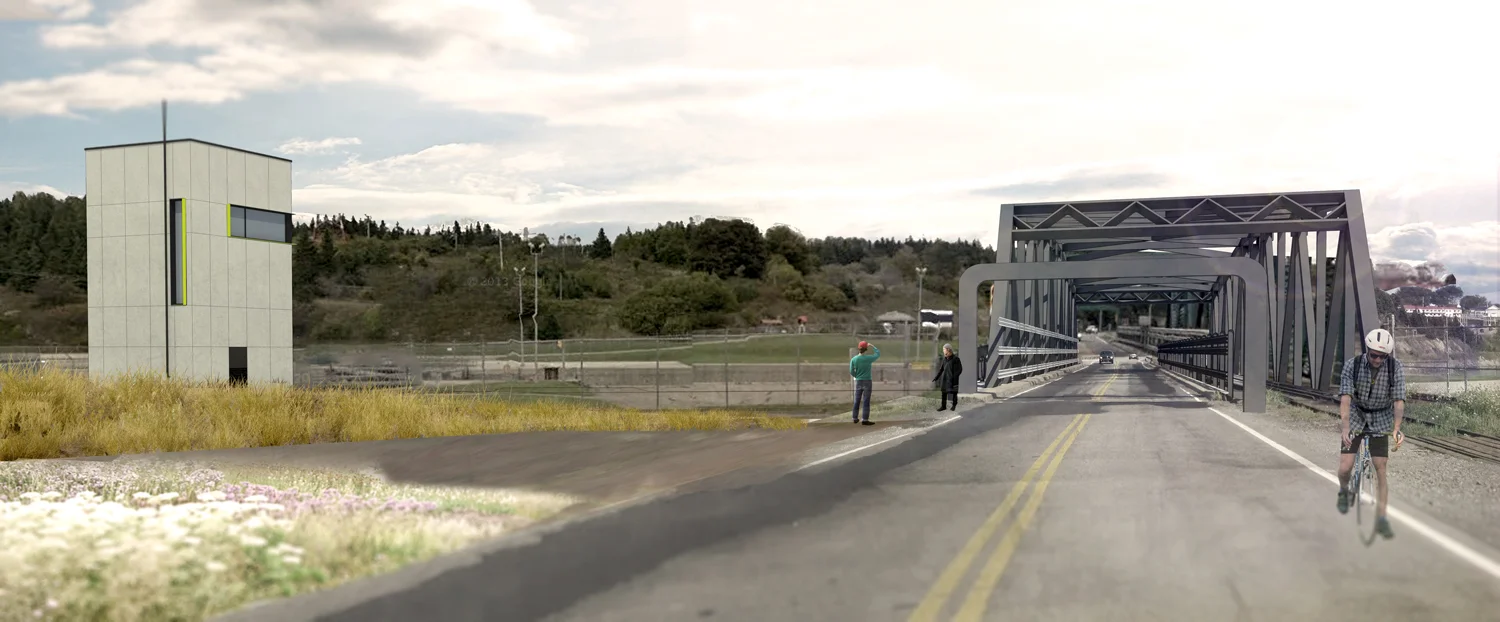

CLEAR VIEWS The height of the control tower provides clear views of the waterway on both sides of the bridge.

CLEAR VIEWS
The height of the control tower provides clear views of the waterway on both sides of the bridge.
